ACE TRUCKS AF1 RAW POLISHED

Sold as a Set (2 Trucks)

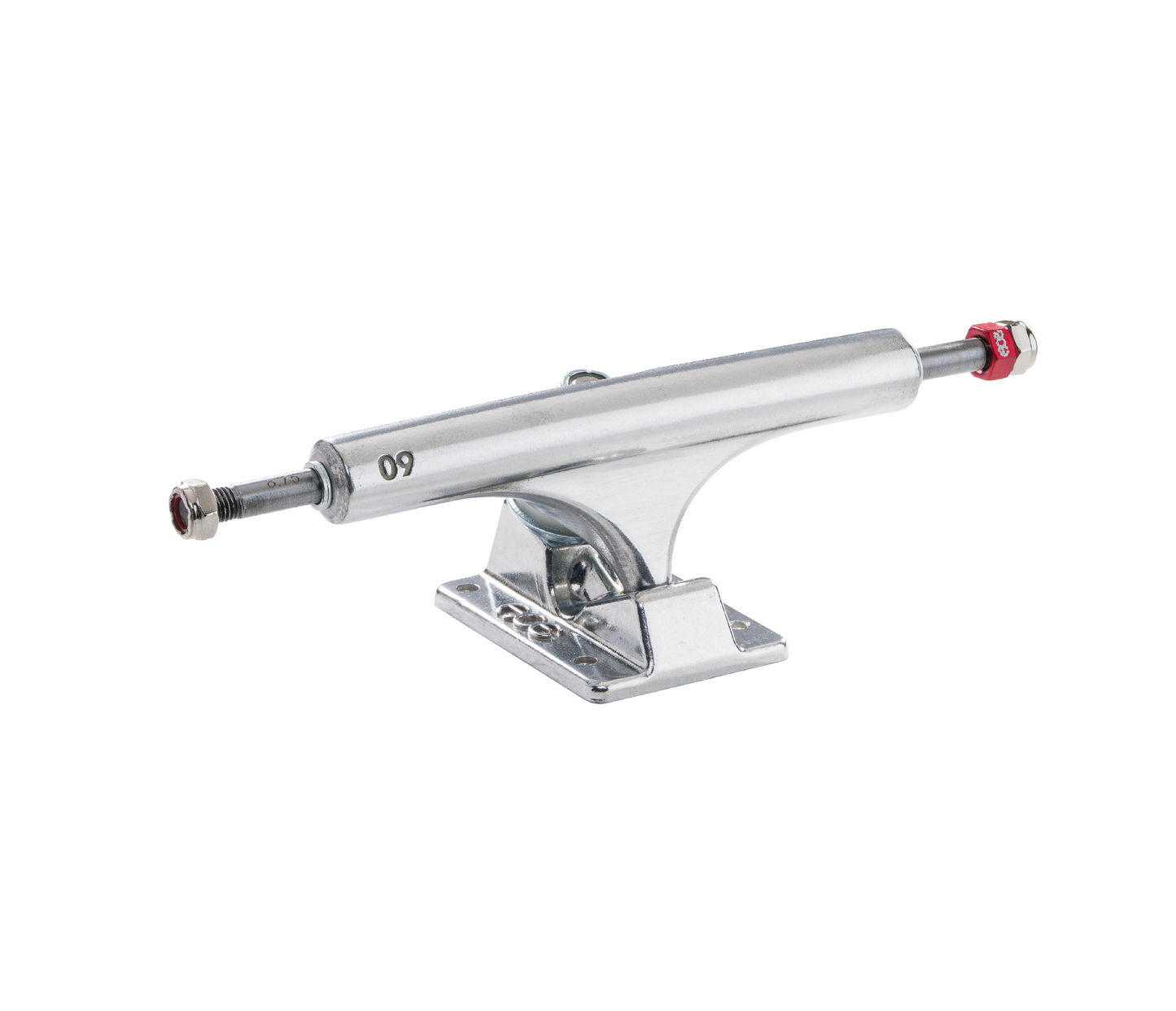

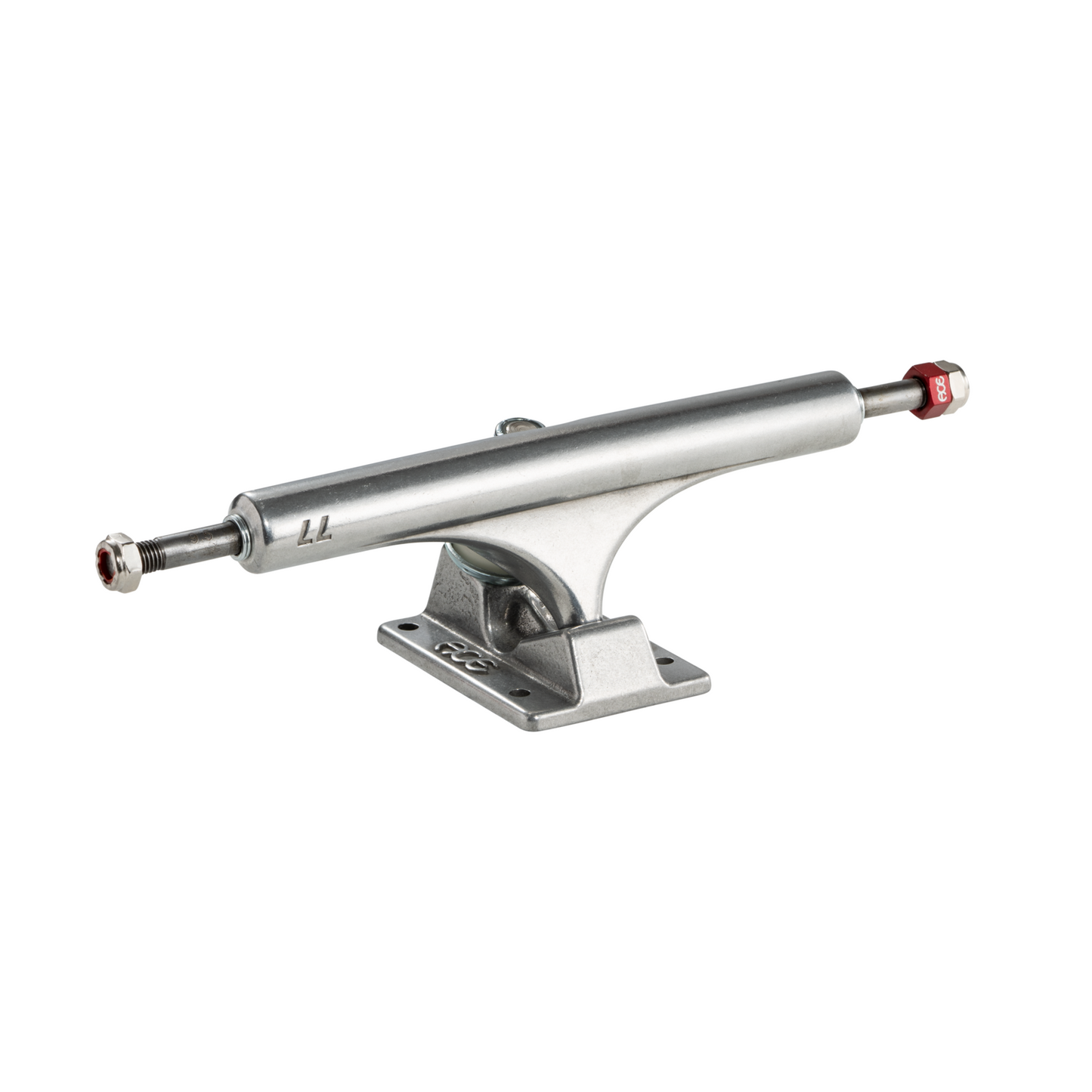

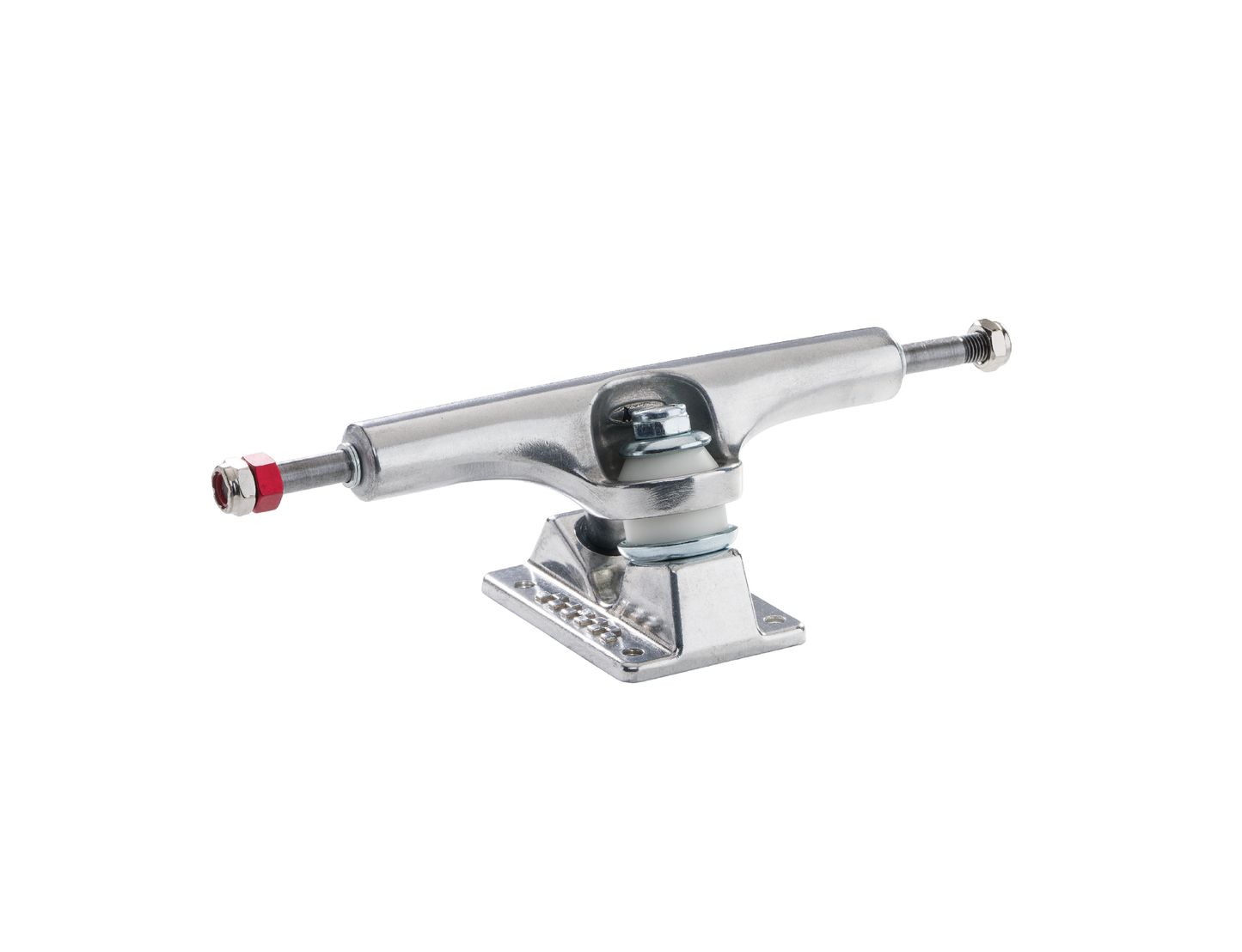

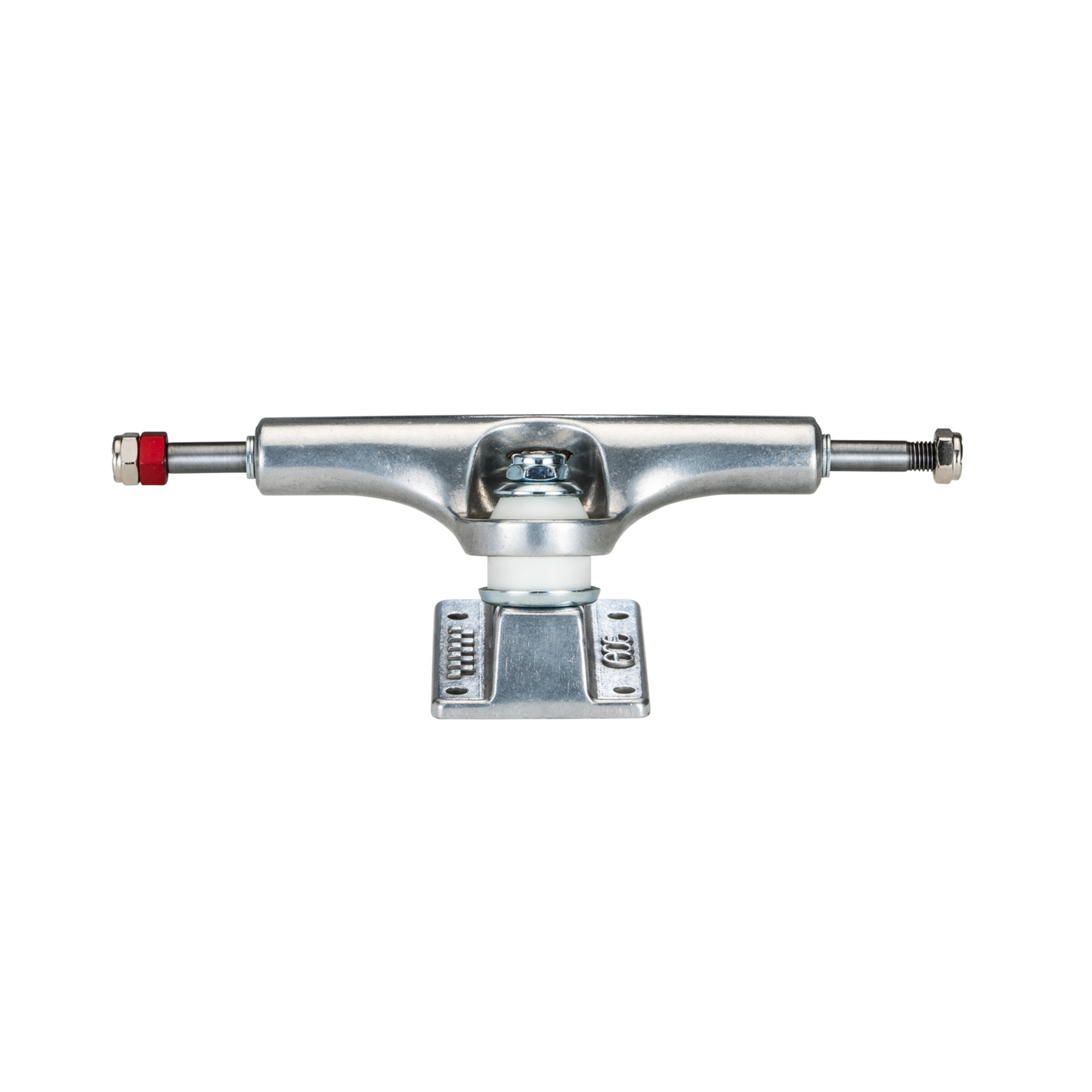

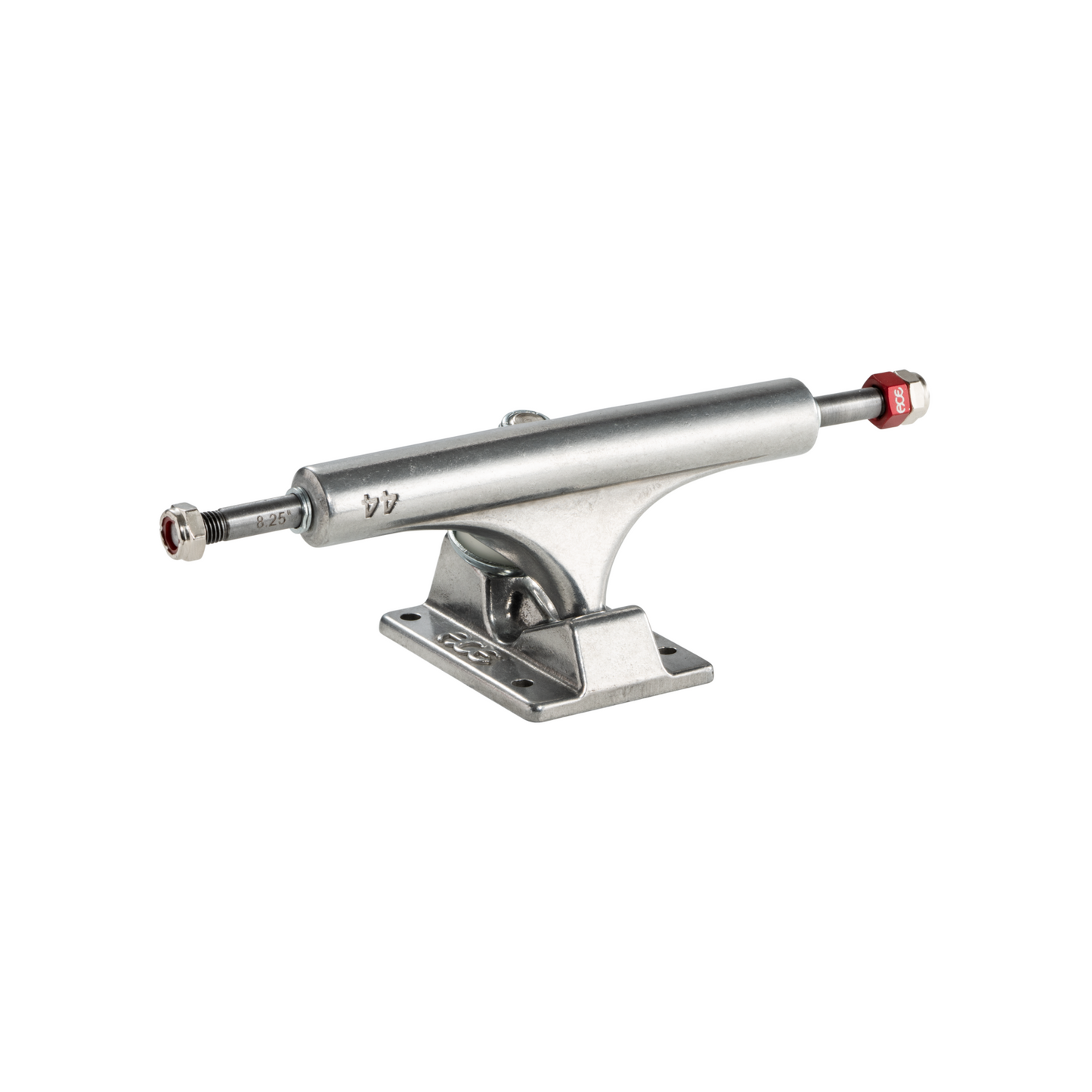

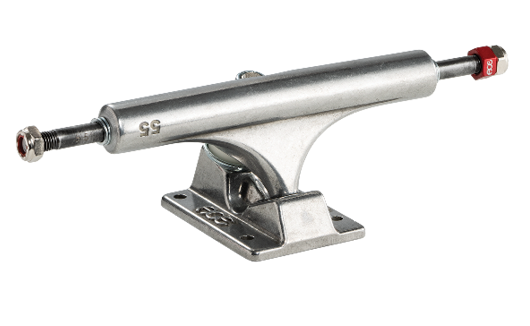

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminium’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 80 models for a better fit across multiple board widths.

The Ace AF1, tomorrow’s technology today!

Available in 6 sizes
AF1 33
AF1 44
AF1 55
AF1 60
AF1 77
AF1 80

- Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for better response.
- Refined suspension for a cleaner turn.
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact.

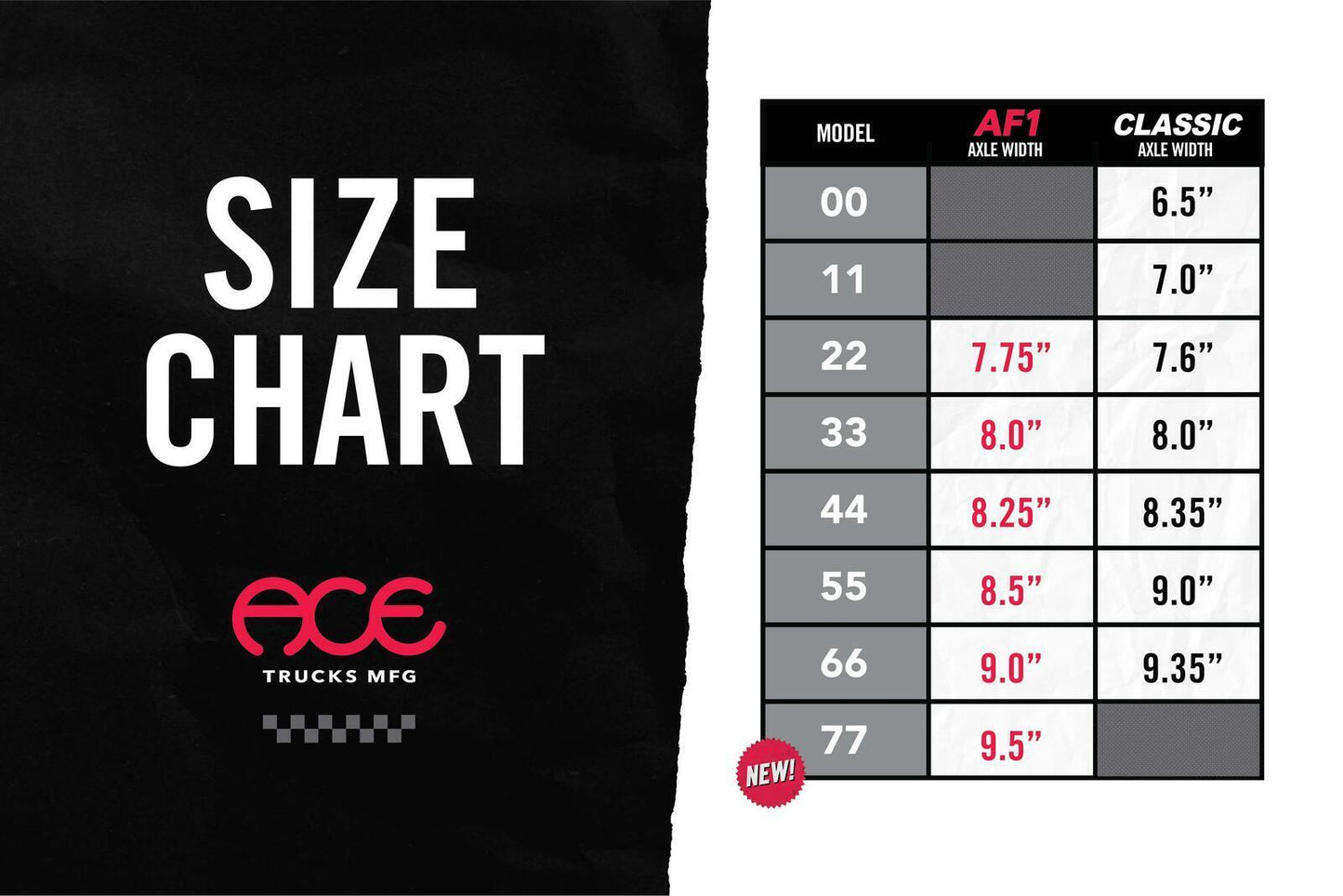

Recommended Deck Width Size Guide

22 (7.5" - 8.0")
33 (7.75" - 8.125")
44 (8.12" - 8.3")
55 (8.3" - 8.75")
60 (8.5" - 9.0")
66 (8.75" - 9.25")
77 (9.25" - 9.75")
80 (10.0" - 10.5")
